2BHK HOUSEPLAN WITH DIMENSIONS|16x50 2BHK HOUSEPLAN WITH CAR PARKING

Every person's dream is to build a dream house once in the lifetime. House is a place which provides comfort to the individuals. "Building Plan" provides you the best 2d plan and 3d plan. Here in this article we are going to discuss about 16 feet x 50 feet which is totally 800 square feet area  house design. Unit of the plan is in feet and inches if you want to convert it to meter just multiply it by 0.3048 [1feet=0.3048].We had provided 2 option for the same dimension of the plot.

Download both plan which is available in the pdf format click the link below the plan images below.

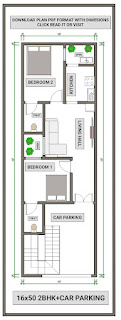

1st option:16x50 2BHK WITH CAR PARKING



DOWNLOAD THE PDF FILE - CLICK HERE

BRIEF SPECIFICATION ABOUT THE HOUSE PLAN:

  • LAYOUT SIZE-16 X 50 FEET
  • AREA SIZE-800 SQUARE FEET
  • TYPE OF CONTRUCTION-RESIDENTIAL
  • PARKING TYPE-CAR PARKING
  • NO OF FLOORS-1
  • NO OF BEDROOM-2
  • NO OF TOILET-2
  • NO OF ATTACH-2
  • IDEAL FACING-SOUTH FACING
  • WALL SIZE-6 INCH

STAIRCASE DETAILS:

  • POSITION-AT PARKING
  • WIDTH  -3 FEET
  • THREAD -9 INCHES
  • RISER  -7 INCHES

The size of the plot in this given plan is 800 square feet in which 16 is the width of the plot and 50 is the length of the plot, the facing of the house is south direction. The house is constructed by using 6-inch size block for every wall even though 4-inch block can also be used to construct the inner wall.

There are 2 bedrooms in this house and attach toilet is provided for both bedrooms with proper ventilation. Staircase is provided in the car parking area in future the house can be used for rented purposes also. The riser of the staircase is 7 inches, and the thread of the staircase is 9 inches. Width of the staircase is 3 feet. Landing is also provided with the size of 3 feet.

O.T.S [OPEN TO SURFACE] is provided in the living hall and as well as near the kitchen to provided proper ventilation and light to the house. Easily 6 to 7 members can live in the house.



2nd option-16 x 50 floor plan



16X50 2BHK + CAR PARKING FLOOR PLAN

Download the plan : CLICK HERE

BRIEF SPECIFICATION ABOUT THE HOUSE PLAN:

  • LAYOUT DIMENSIONS    :16 FEET BY 50 FEET
  • LAYOUT AREA [SIZE]      : 800 SQUARE FEET
  • PARKING TYPE                 : CAR PARKING
  • NUMBER OF ROOMS       : 2 BEDROOMS
  • NUMBER OF TOILET       : 2 TOILET
  • HOUSE FACING                : NORTH FACING

Differences between 1st option plan and 2nd option plan:

The Facilities and amenities provided for the 16 x 50 feet house plan in the both options are almost same. The main difference is the placement of the each blocks if you see the kitchen in the 1st option is provided at the center of the plan where in the second option the kitchen is provided at the back on the right hand side of the bedroom. the other change in the second plan is the parking area is large when compare to the parking area of the 1st option plan

The dressing room in the first plan have been removed in the second option plan resulting extra area to the car parking in which easily an extra bike can be parked.

2nd plan option details:

The built-up area of this plan is 800 square feet in which the the carpet area of this plan is 680 square feet. built-up area is defined as the area in which the construction is going to covered or the given area in which the building is going to built if you want take exact plot area then take the measurement of the moulded area once the moulding stage is completed.

The carpet area is defined as the area excluding the toilet, bathroom area and the area of the wall construction. One can assume carpet as the area in which the carpet can be laid on the floor since no one place or uses the carpet in the bathroom or toilet and carpet cannot be placed beneath the constructed wall.

The size of the main gate opening is the 10 feet in which one single gate of size 3 feet 3 inches and one doubled gate of size 6 feet 6 inches can be used. The height of the opening is depend upon the client of the house whether it can kept 7 feet or 8 feet. on moving to the main door the bedroom is provided at the left and passage of 4 feet at the right leading to the living hall with the open space on it. Further moving to the last you would find the kitchen with the open space which can also be used as the wash area at the right and bedroom with the attach toilet at the left hand side.

Which option is more better?

since both the plans are almost same but if you want extra bike parking facility then one can go for the 2nd option plan since extra area is provided when compare to the first plan.
